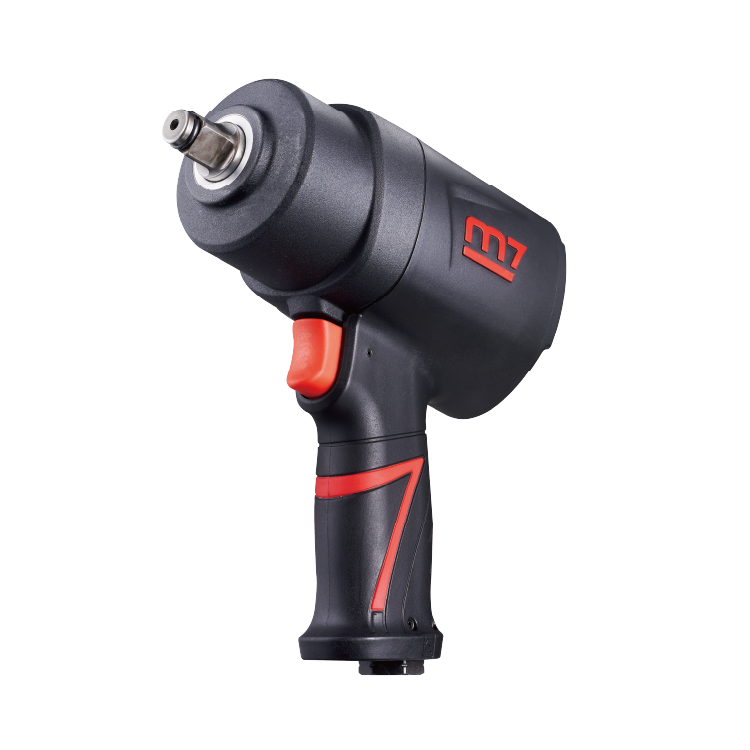

1/2" Drive Air Impact Wrench

NC-4235 Contact Us

Effort-saving directional switch with rotary knob design.

360 degree swivel Air Inlet to prevent air hose twisted.

Download

SPECIFICATIONS


Square Drive
1/2"

Torque Range
200-500 (FT-LB) / 271-678 (Nm)

Max Torque
1100 (FT-LB) / 1491 (Nm)

No Load Speed
9000 (R.P.M)

Avg. Air Consumption
4.6 (CFM) / 132 (L/min)

Air Pressure
90 (PSI) / 6.3 (bar)

Overall Length
7-1/16" / 180 (mm)

Net Weight
2.1

Net Weight
4.6

Air Hose
3/8"

Sound Pressure
91.0 (dBA)

Vibration Level
4.1 (m/s²)

Bolt Capacity (Screw)
3/4" / 19 (mm)

Air inlet
1/4"

Bolt Capacity (Nut)
30 (mm)
