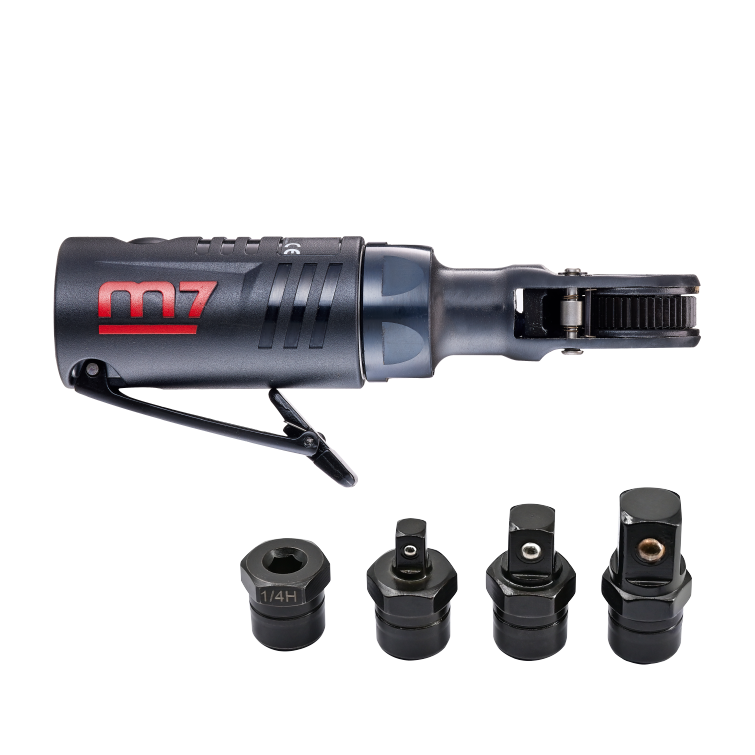

Minimal Multifunction Ratchet Wrench
NE-0104-KIT Contact Us
S.Q:1/4" 3/8" 1/2" & HEX BIT:1/4"
Composite material light design.
5-motor Blade for even more power than conventional drives.
High reliability and continuous operation.
Precise machined 0.3 HP Air Motor.
Minimal body design is ideal for operation in limited spaces.
Low vibration, low noise, increase the friendliness of working conditions.
Read More +
Download
SPECIFICATIONS
Torque Range
3.7–22.1 (FT-LB) / 5-30 (Nm)
Max Torque
29.50 (FT-LB) / 40 (Nm)
No Load Speed
400 (R.P.M)
Overall Length
6-17/64" / 159 (mm)
Net Weight
0.48
Net Weight
1.05
Air Hose
3/8"
Sound Pressure
81.5 (dBA)
Air inlet
1/4"
Vibration Level
3.5 (m/s²)
Avg. Air Consumption
3.0 (CFM) / 84.96 (L/min)
Air Pressure
90 (PSI) / 6.3 (bar)
