Pad Dia
1-31/32" / 50 (mm)
BACK
Recommend
Compressed Air System
Recommend
Compressed Air System

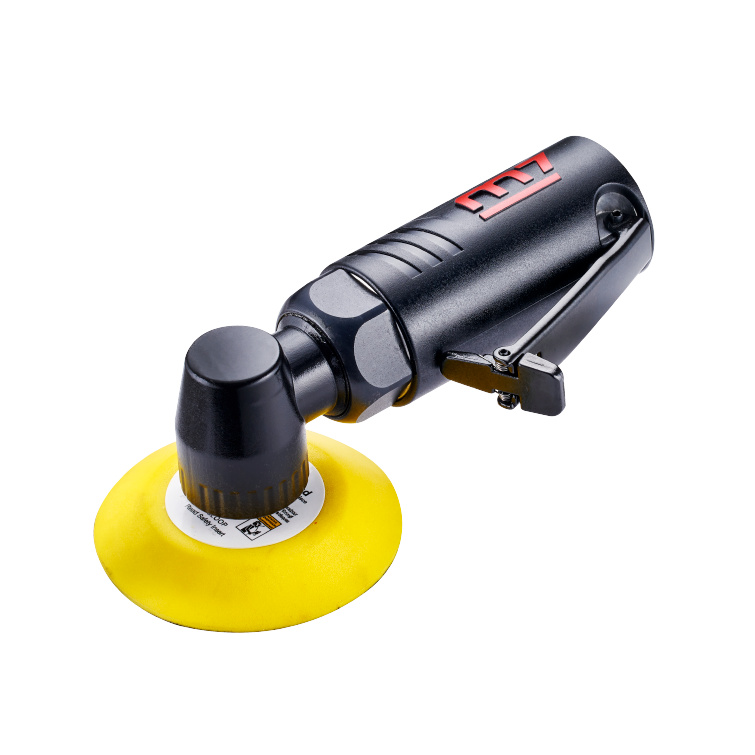

Minimal Angle Sander
QB-202 Contact Us
Composite material light design.
5-motor Blade for even more power than conventional drives.
High reliability and continuous operation.
Precise machined 0.3 HP Air Motor.
Minimal body design is ideal for operation in limited spaces.
Lever with safety lock prevents accidental start-up.
Low vibration, low noise, increase the friendliness of working conditions.
Read More +
Download
SPECIFICATIONS
Spindle Size
5/16"-24UNF
Motor
0.3
No Load Speed
18000 (R.P.M)
Overall Length
5-23/64" / 136 (mm)
Net Weight
0.41
Net Weight
0.9
Air Hose
3/8"
Sound Pressure
81.5 (dBA)
Air inlet
3/8"
Air Pressure
90 (PSI) / 6.3 (bar)
Avg. Air Consumption
3.60 (CFM) / 102 (L/min)
Vibration Level
1.8 (m/s²)
